THIN Multiples Dyad Vertical

$1,190.00 – $3,330.00

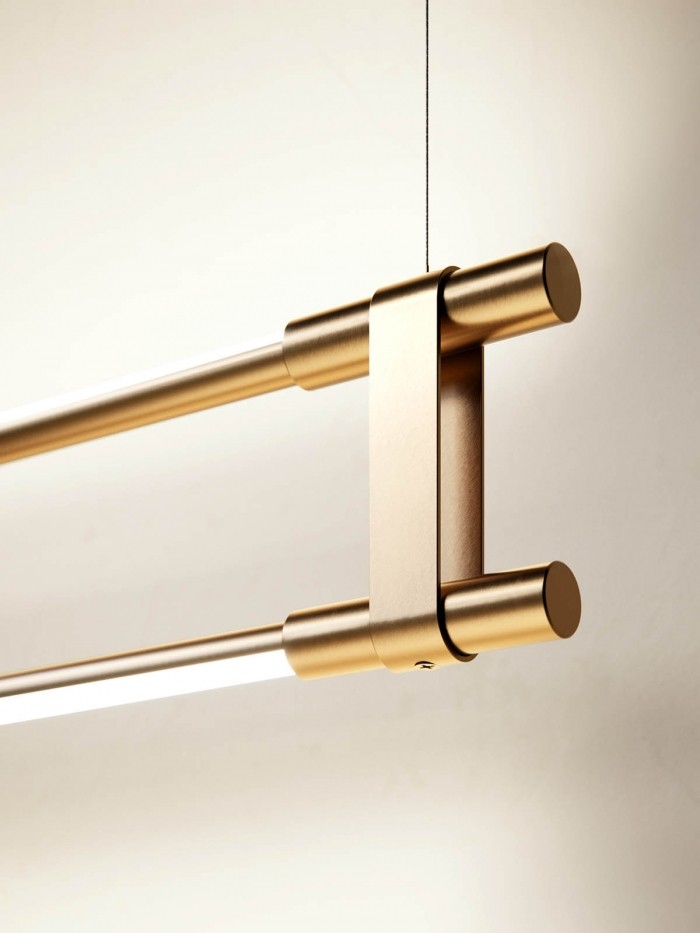

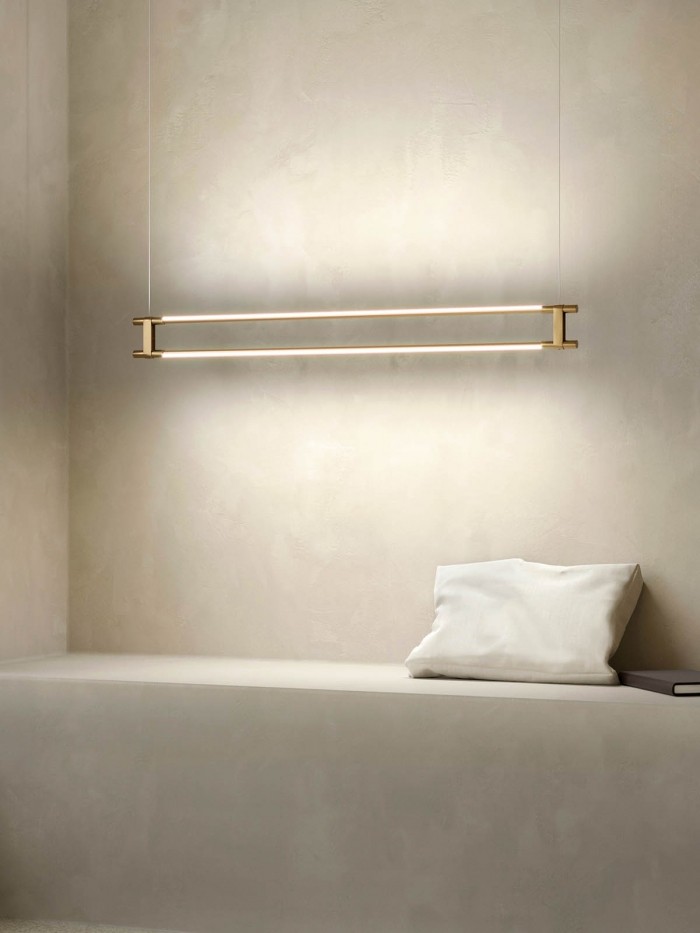

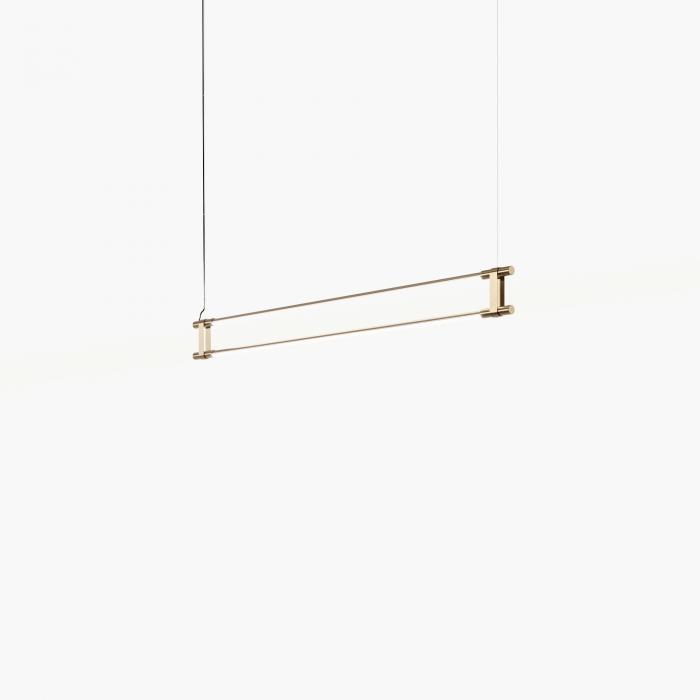

The THIN Multiples Dyad Vertical features two 1/2-inch light segments in a stacked arrangement. Magnetic connections enable LED light segments to rotate 360° to adjust direct and direct lighting independently. Longer lines of light can be created by connecting sections together. Contact us for longer runs or custom needs.

4-6 Week Lead Time*
*Lead time subject to change based on order and stock quantities.



Pricing applicable to United States and Canada only.
Shipping not included for Alaska, Hawaii, and Canada.

?

24 in [61 cm]

36 in [91.4 cm]

The nominal length of a light tube from center to center. Contact us if you need custom dimensions.

?

1 Section

2 Connected Sections

3 Connected Sections

Light segments magnetically join together through connecting hardware to create longer and potentially infinite lengths. For longer lengths or custom dimensions, please contact us.

?

Center-Mount to Ceiling (Up to 2 Connected Sections)

Direct-Mount to Ceiling

?

English Bronze

Black Oxide

Satin Brass

Satin Nickel

Contact us for finish samples or custom options.

?

Frosted

?

2700K

3000K

3500K

4000K

?

L. Standard Local 120-277V | 2-Wire/TRIAC/Forward-Phase, 0-10V, ELV/Reverse-Phase

R. Standard Remote 120-277V | 2-Wire/TRIAC/Forward-Phase, 0-10V, ELV/Reverse-Phase

-

?

2" Mini Canopy - Remote Power, Direct-Mount to Ceiling Only

5" Cover Plate - Remote Power Only

7" Local Canopy- Local Power Only

12.5" Local Canopy - Local Power Only

Local power supplies require a local canopy to hold the power supply. Remote power supplies are compatible with more minimal hardware because power supplies are located
elsewhere.

Clear

LIGHT QUALITY

CRI 95+, R9 90+

LED LIFESPAN

50,000 hrs, L80

BODY MATERIAL

Solid Brass, PMMA

CERTIFICATIONS

cUL, UL, CE, Damp Location Rated, Title 24

DESIGNER

Peter Bristol

WATTAGE & LUMENS (PER SECTION)

24 IN – 13.6W, 0-1200LM 36 IN – 19.2W, 0-1840LM

WEIGHT

24 IN – 3.3 lbs 36 IN – 4 lbs

MOUNTING

10ft 1/16” aircraft cable, field adjustable 16ft Clear-jacketed 22AWG co-axial silver cord, field adjustable Direct-mounting and center-mounting with Linear Cable Collar options available (for up to 2 connected sections)
