THIN Primaries Rectangle

$2,230.00 – $3,370.00

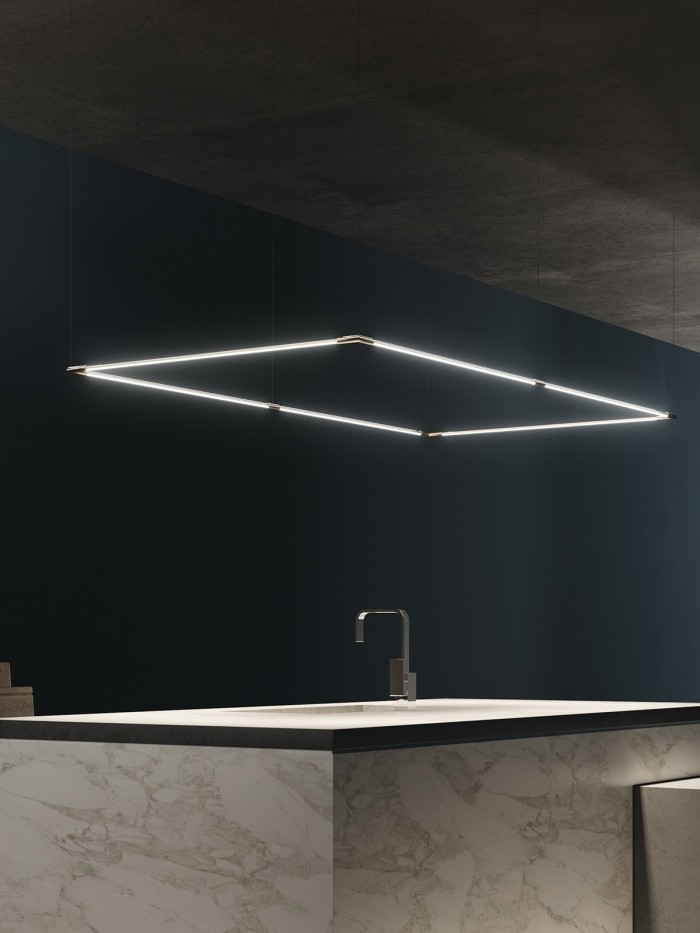

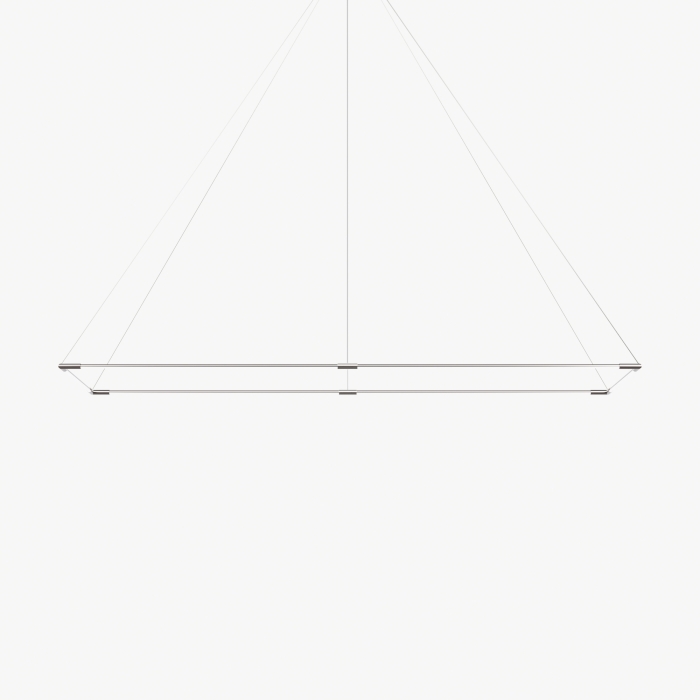

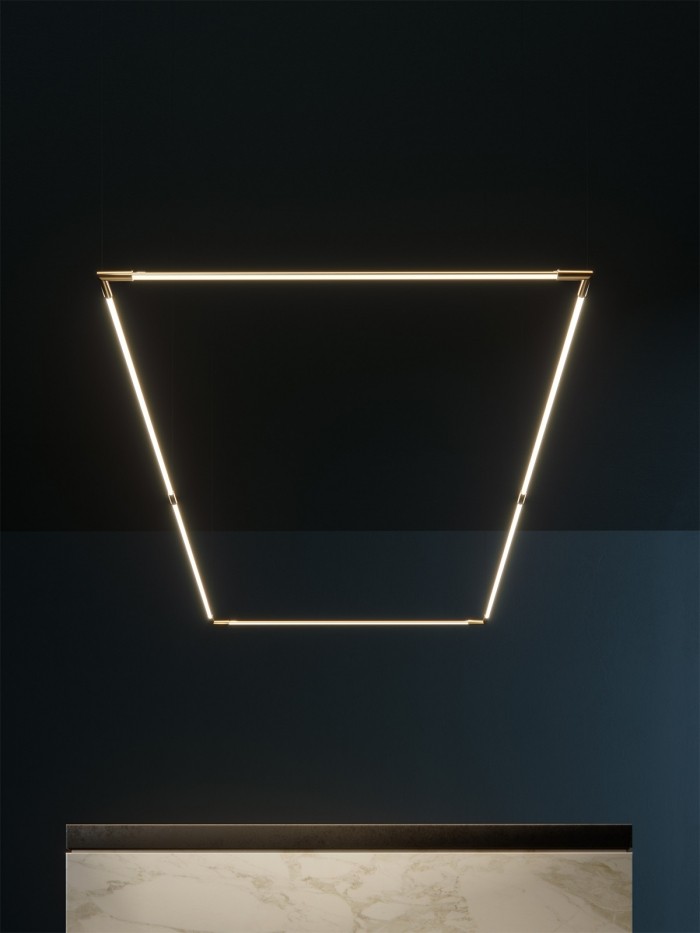

The THIN Primaries Rectangle showcases brass linear lighting in a minimal 1/2-inch silhouette. Contemporary LED light segments are connected magnetically to enable fully rotatable light for direct or indirect solutions. As a signature of the THIN Lighting System, lengths can extend for architectural installations. For custom configurations or longer lengths, please contact us.

4-6 Week Typical Lead Time*
*Lead time subject to change based on order and stock quantities.



Pricing applicable to United States and Canada only.
Shipping not included for Alaska, Hawaii, and Canada.

?

Center-Mount to Canopy

Direct-Mount to Ceiling

?

24 in x 36 in

24 in x 72 in (x2 Connected 36 in Segments)

The nominal length of a light tube from center to center. Contact us if you need custom dimensions.

?

English Bronze

Black Oxide

Satin Brass

Satin Nickel

Contact us for finish samples or custom options.

?

2700K

3000K

3500K

4000K

?

Frosted

?

L. Standard Local 120-277V | 2-Wire/TRIAC/Forward-Phase, 0-10V, ELV/Reverse-Phase

R. Standard Remote 120-277V | 2-Wire/TRIAC/Forward-Phase, 0-10V, ELV/Reverse-Phase

-

?

2" Mini Canopy - Remote Power, Direct-Mount to Ceiling Only

5" Cover Plate - Remote Power Only

7" Local Canopy- Local Power Only

Local power supplies require a local canopy to hold the power supply. Remote power supplies are compatible with more minimal hardware because power supplies are located
elsewhere.

Clear

LIGHT QUALITY

CRI 95+, R9 90+

LED LIFESPAN

50,000 hrs, L80

BODY MATERIAL

Solid Brass, PMMA

CERTIFICATIONS

cUL, UL, CE, Damp Location Rated, Title 24

DESIGNER

Peter Bristol

WATTAGE & LUMENS

24 IN x 36 IN – 32.8W, 0-3000LM 24 IN x 72 IN – 52W, 0-4800LM

WEIGHT

24 IN x 36 IN – 3.4 lbs 24 IN x 72 IN – 4.9 lbs

MOUNTING

(x4) 1/16” aircraft cables, field adjustable 16ft Clear-jacketed 22AWG co-axial silver cord, field adjustable Direct-mounting and center-mounting options available Cable Collar in matching finish optional for center-mounting (24 IN x 36 IN only)
