THIN Primaries Octagon

$2,890.00 – $3,780.00

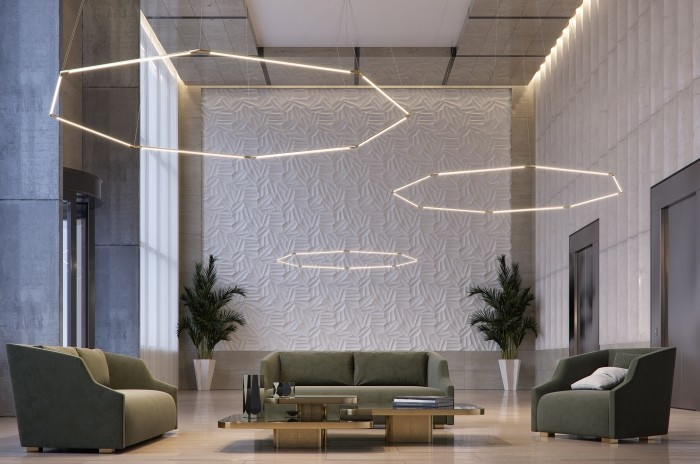

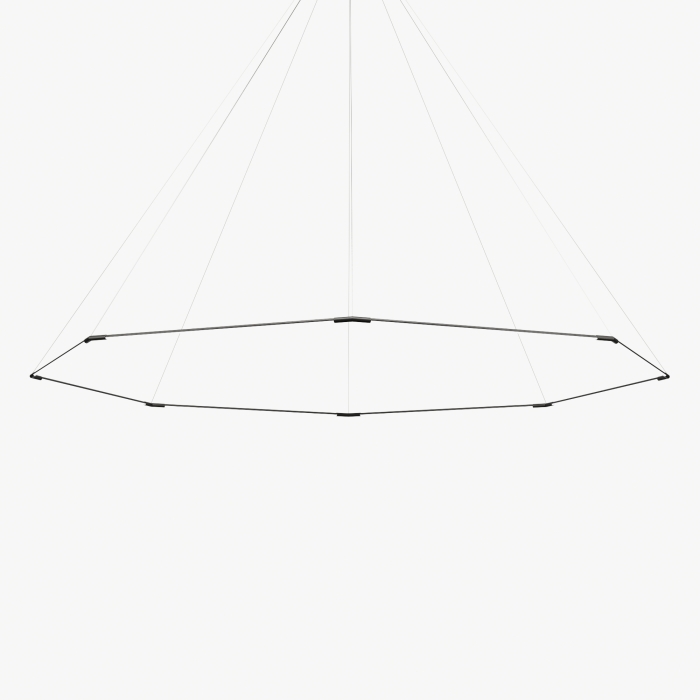

The THIN Primaries Octagon displays eight ½-inch precision-machined light segments that magnetically connect and rotate a full 360° for direct or indirect lighting. The suspended lighting solution can be expanded, stacked, or clustered to fit architectural specifications or create large-scale installations.

4-6 Week Typical Lead Time*
*Lead time subject to change based on order and stock quantities.



Pricing applicable to United States and Canada only.
Shipping not included for Alaska, Hawaii, and Canada.

?

Center-Mount to Canopy

Direct-Mount to Ceiling

?

24 in [61 cm]

36 in [91.4 cm]

The nominal length of a light tube from center to center. Contact us if you need custom dimensions.

?

English Bronze

Black Oxide

Satin Brass

Satin Nickel

Contact us for finish samples or custom options.

?

2700K

3000K

3500K

4000K

?

Frosted

?

L. Standard Local 120-277V | 2-Wire/TRIAC/Forward-Phase, 0-10V, ELV/Reverse-Phase

R. Standard Remote 120-277V | 2-Wire/TRIAC/Forward-Phase, 0-10V, ELV/Reverse-Phase

-

?

2" Mini Canopy - Remote Power, Direct-Mount to Ceiling Only

5" Cover Plate - Remote Power Only

7" Local Canopy- Local Power Only

12.5" Local Canopy - Local Power Only

Local power supplies require a local canopy to hold the power supply. Remote power supplies are compatible with more minimal hardware because power supplies are located
elsewhere.

Clear

LIGHT QUALITY

CRI 95+, R9 90+

LED LIFESPAN

50,000 hrs, L80

BODY MATERIAL

Solid Brass, PMMA

CERTIFICATIONS

cUL, UL, CE, Damp Location Rated, Title 24

DESIGNER

Peter Bristol

WATTAGE & LUMENS

24 IN – 54.4W, 0-4800LM 36 IN – 76.8W, 0-7400LM

WEIGHT

24 IN – 4.5 lbs 36 IN – 5.58 lbs

MOUNTING

(x8) 1/16” aircraft cables, field adjustable 16ft Clear-jacketed 22AWG co-axial silver cord, field adjustable Direct-mounting and center-mounting options available
