THIN Vertical Suspension

$530.00 – $3,660.00

The THIN Vertical Suspension is characterized by the simplest of forms – a line. Modern and minimal, the 1/2-inch diameter THIN Vertical Suspension hangs from a single mounting point and can be installed in solitary or clustered configurations. Contact us for custom installations.

4-6 Week Typical Lead Time*
*Lead time subject to change based on order and stock quantities.



Pricing applicable to United States and Canada only.
Shipping not included for Alaska, Hawaii, and Canada.

?

1 Segment

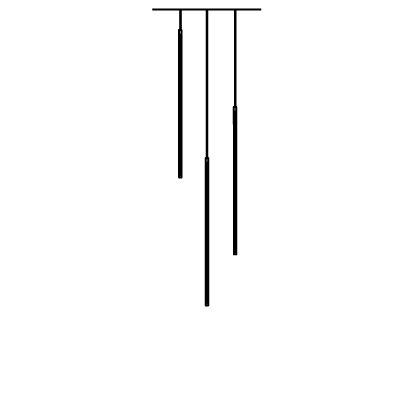

3 Segments

4 Segments

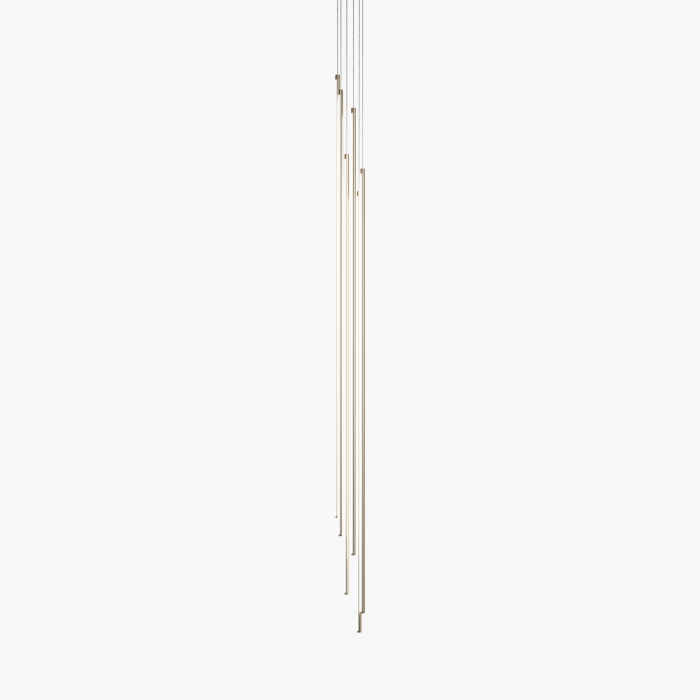

6 Segments

Variations are offered for this option.

?

English Bronze

Black Oxide

Satin Brass

Satin Nickel

Contact us for finish samples or custom options.

?

24 in [61 cm]

36 in [91.4 cm]

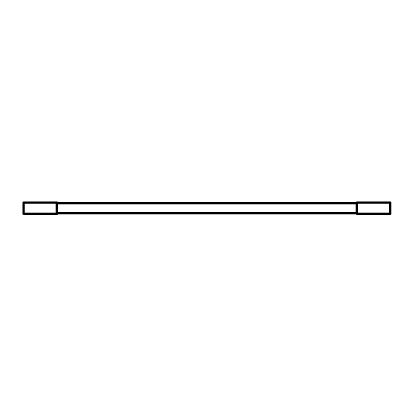

48 in [121.9 cm]

The nominal length of a light tube from center to center. Contact us if you need custom dimensions.

?

2700K

3000K

3500K

4000K

?

Frosted

?

L. Standard Local 120-277V | 2-Wire/TRIAC/Forward-Phase, 0-10V, ELV/Reverse-Phase

R. Standard Remote 120-277V | 2-Wire/TRIAC/Forward-Phase, 0-10V, ELV/Reverse-Phase

-

?

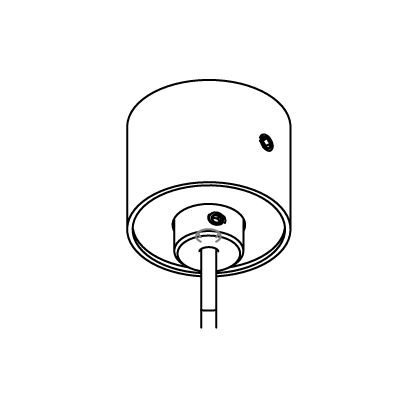

2" Mini Canopy - Remote Power, Single Segment Only

5" Cover Plate - Remote Power Only

7" Local Canopy- Local Power Only

12.5" Local Canopy - Local Power Only

Local power supplies require a local canopy to hold the power supply. Remote power supplies are compatible with more minimal hardware because power supplies are located
elsewhere.

Clear

LIGHT QUALITY

CRI 95+, R9 90+

LED LIFESPAN

50,000 hrs, L80

BODY MATERIAL

Solid Brass, PMMA

CERTIFICATIONS

cUL, UL, CE, Damp Location Rated, Title 24

DESIGNER

Peter Bristol

WATTAGE & LUMENS (PER SEGMENT)

24 IN – 6.8W, 0-600LM 36 IN – 9.6W, 0-920LM 48 IN – 13.6W, 0-1227LM

WEIGHT

24 IN – 0.46 lbs 36 IN – 0.6 lbs 48 IN – 0.7 lbs

MOUNTING

10ft 1/16” aircraft cable, field adjustable 16ft Clear-jacketed 22AWG co-axial silver cord, field adjustable All segments installed together on a single canopy
